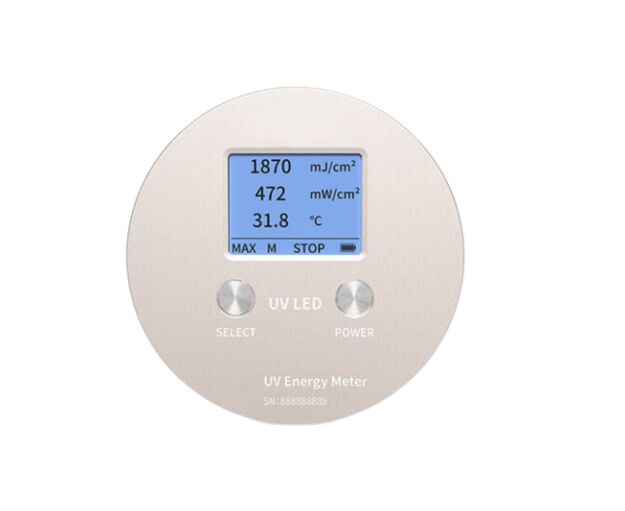

UV Energy Meter
The UV energy meter is a professional instrument designed for testing UV LED light sources, also known as a UV energy tester. With a spectral response range of 340 nm to 420 nm, it can measure UV LED lamps across various wavelength bands, including 365 nm, 375 nm, 385 nm, 395 nm, and 405 nm, making it the preferred choice for testing the energy and power of UV LED light sources.
Instrument parameters
| Parameter Name | Specifications |
| Spectral Range | 340nm – 420nm, calibrated at 395nm light source |
| Power Measurement Range | 0 – 200,000 mW/cm² |
| Power Resolution | 1 mW/cm² |
| Energy Measurement Range | 0 – 999,999 mJ/cm² |
| Measurement Accuracy | H<50mW/cm²:±5mW/cm² H>=50mW/cm²:±10%H, ±5%H |
| Temperature Range | -55°C – +125°C |
| Sampling Speed | 2048 times/second |
| Power Data Storage Interval | 32 times/second |
| Temp. Data Storage Interval | 2 times/second |
| Recording Period | 32 minutes |
| Power Supply | 2 AAA alkaline batteries |
| Display | 240*160 dot matrix LCD |
| Test Aperture Diameter | Φ10mm |
| Instrument Dimensions | Diameter 120 mm * Thickness 13 mm |
| Instrument Weight | 245g |
