تفاصيل المنتج:
|
| الكلمة الرئيسية: | ناقل مصباح الزئبق بالأشعة فوق البنفسجية | قوة: | 3000 واط |
|---|---|---|---|
| جهد الإدخال: | تيار متردد 85-265 فولت | طول الموجة: | 280-405 نانومتر |
| طريقة التبريد: | تبريد الهواء | نوع الأشعة فوق البنفسجية: | مصباح الزئبق |
| ضمان: | 1 سنة | طَرد: | حالة خشبية |
| إبراز: | UV curing conveyor system with mercury lamp,UV ink glue drying conveyor system,UV adhesive curing conveyor machine,UV ink glue drying conveyor system,UV adhesive curing conveyor machine |
||

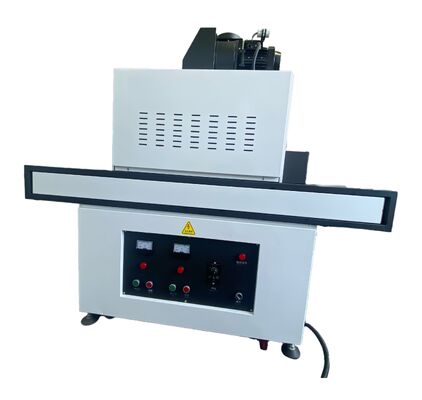

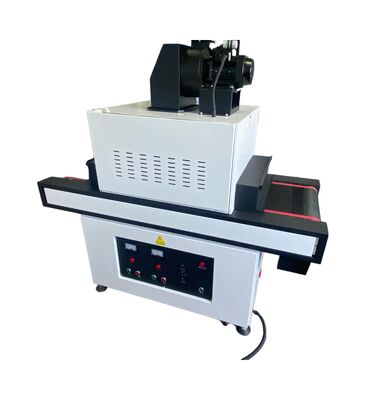

UV Mercury Lamp Conveyor For Curing UV Ink/Glue/Varnish
UV Mercury lamp is one kinds of ultraviolet ray radiation lamp to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .
UV Mercury Lamp Conveyor Datasheet
|
Model
|
CG-UV-500*200mm-3000W | lamp color |
White/black |
|
Power |
3000W |
UV type |
Mercury lamp |
|
Input voltage |
AC85-265V |
Wave length |
280-405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
1000H |
|
Cooling way |
Air cooling |
Emitting window size |
500*200mm |
|
Operation method |
Automatic |
UV intensity |
0%-100% dimmable |
|
Best emitting distance |
30-50mm | Package | wooden case |
UV Mercury Lamp Conveyor FAQ:
Q1: What’s the wavelength of the uv lamp ?
A1: Usually 280-405nm ,the mainly peak wavelength is 365 nm.
Q2: What’s the material of lamp ?
A2: Quartz
Q3: What’s the cooling way for the leduv curing system ?
A3: Air cooling
Q4: The uv intensity can be change?
A4: Yes, the uv intensity is changeable from 0%-100%
Q5: What’s the max energy of uvled lamp ?
A5: It’s depend on emitting time , the longer the higher energy output total amount.
Q6: What’s the lifespan of the uvled curing lamp ?
A6: 800-1000 hours
